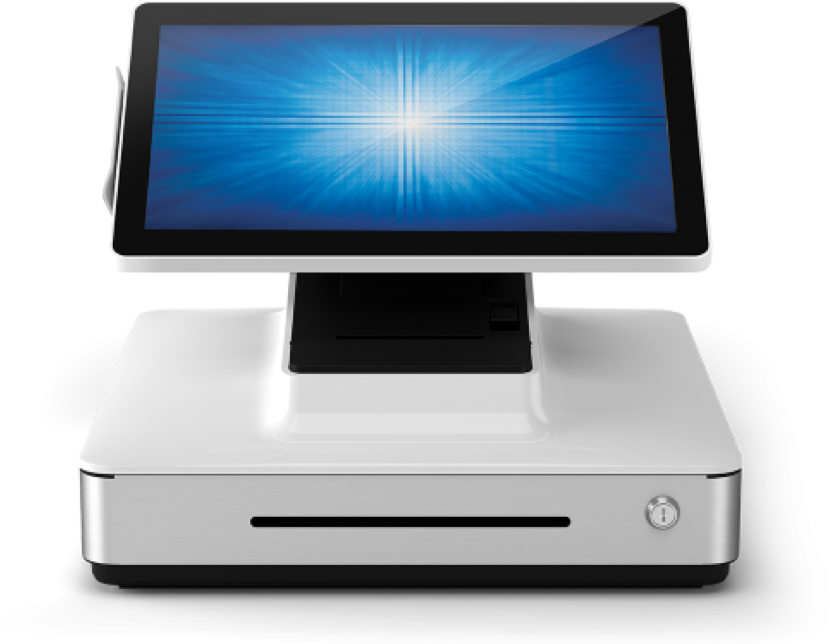

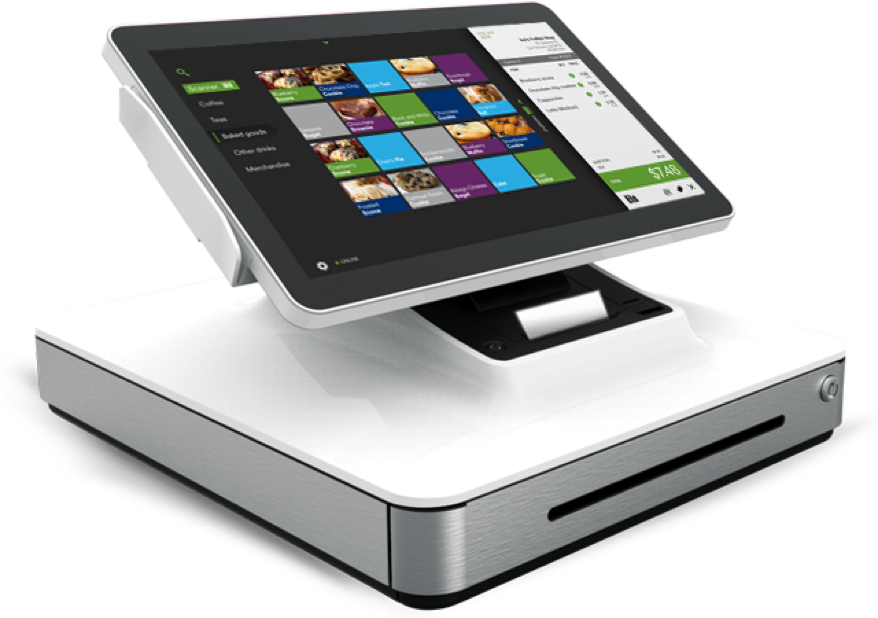

Elo PayPoint for iPad

Overview

Turn your iPad into a full-fledged POS system with an integrated point of sale dock. The Elo PayPoint gives you an all-in-one cash drawer, card reader, barcode scanner, receipt printer, and customer-facing display that integrates with talech POS software on your iPad.

Features
arrow-bottom
arrow-bottom

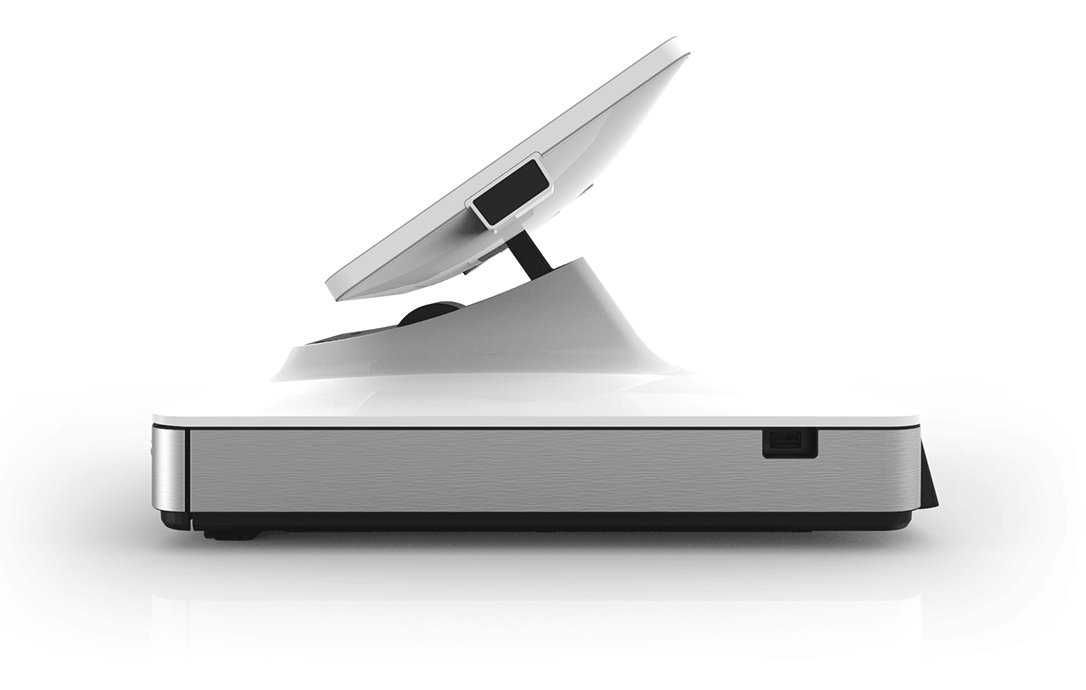

  • Rotating Display Head - Encourage customer engagement and allow customers to enter their own information like email addresses
  • iPad Charging - Charge your iPad while it’s in the Elo PayPoint dock
  • Plug and Play set up - Easily connect additional POS peripherals like payment terminals
  • Compact and Versatile - Enjoy a sleek cash drawer, card reader, barcode scanner, receipt printer that doesn’t clutter your countertop

Specs
arrow-bottom
arrow-bottom

  • Apple iPad support: 9.7 in or 10.5 in iPad 4, iPad Air, iPad Air 2
  • Charging:2.5 A with overcurrent protection via Lightning® connector
  • PayPoint dock integration: iOS SDK for POS software interface to hardware peripherals inclusive of diagnostic application and source code
  • Connectivity: wi-fi, bluetooth or 3G/4G LTE via Apple iPad
  • Serial ports: 1 native serial port (RJ-45) USB Ports 1 for accessory charging only (1A 5W)
  • Ethernet port: None. iPad does not support Ethernet.

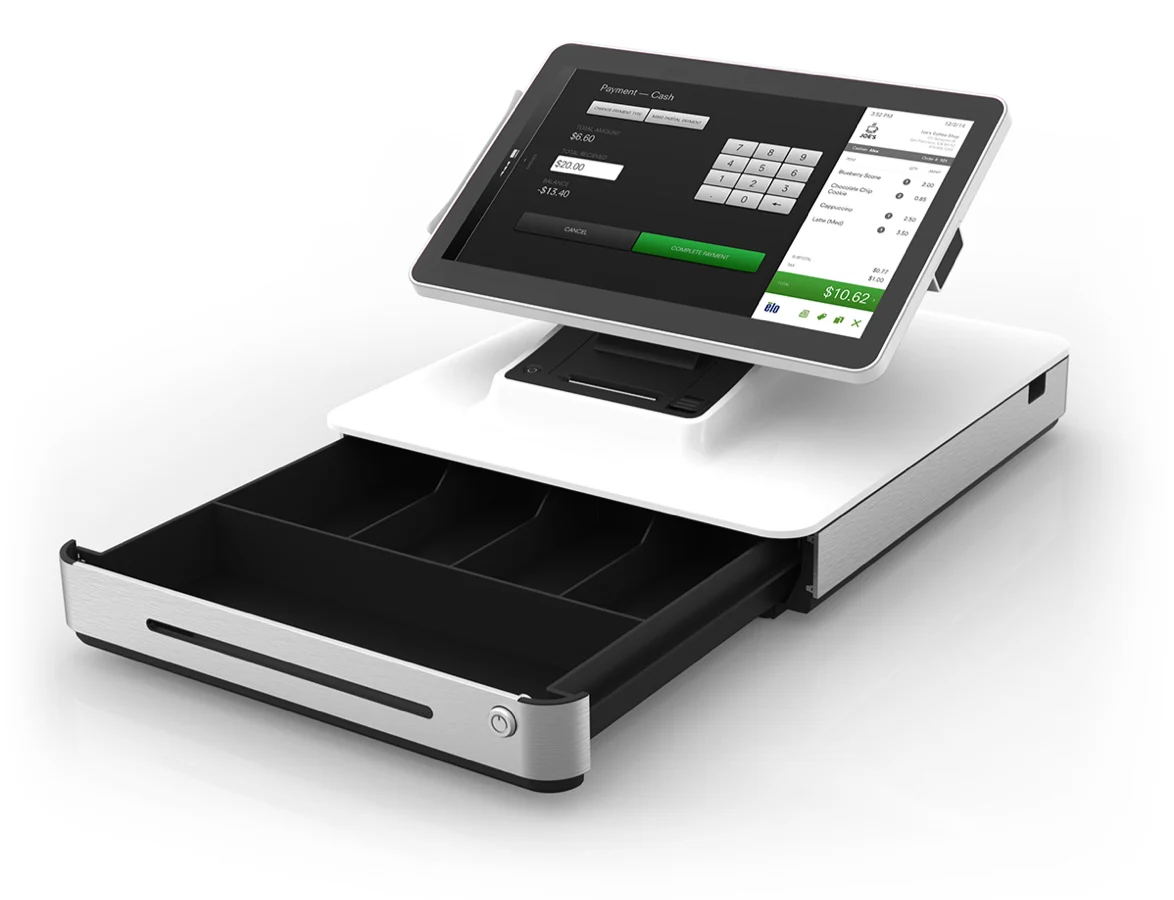

  • Cash drawer: 4 bill trays, 5 coin compartments, 1 check slot, mechanical locking key
  • Printer: Thermal 2 1/4 in (58 mm); accepts 2-inch (50 mm) thermal paper roll
  • Bar code reader: 1D Scanner MSR 3-track encryptable - encryption key and verification of encryption is customer responsibility
  • Customer-facing display: 2 line, 16 character display
  • Dimensions: 13.5 in x 15.7 in (343 mm x 399 mm)
  • Weight: 12.75 lbs (5.8 kg) unpackaged; 16.5 lbs (7.5 kg) packaged
  • Power supply: Internal AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz; 30 W max
